Key Specifications & Performance
-
Wi-Fi 6 (802.11ax) dual-band support, delivering up to 2976 Mbps: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
-
Advanced Wi-Fi features: HE160 channel, 1024-QAM, OFDMA, and MU‑MIMO for efficient high-throughput performance.
-
Optimized for high-density environments—supports 250+ concurrent clients, seamless roaming (802.11k/v/r), Omada Mesh, band steering, load balancing, airtime fairness, beamforming, and more.
-
Design: ultra‑slim form—160 mm diameter × 33 mm thickness—with internal omni antennas (2× ~3–4 dBi for 2.4 GHz, 2–3× ~5 dBi for 5 GHz depending on model).
-

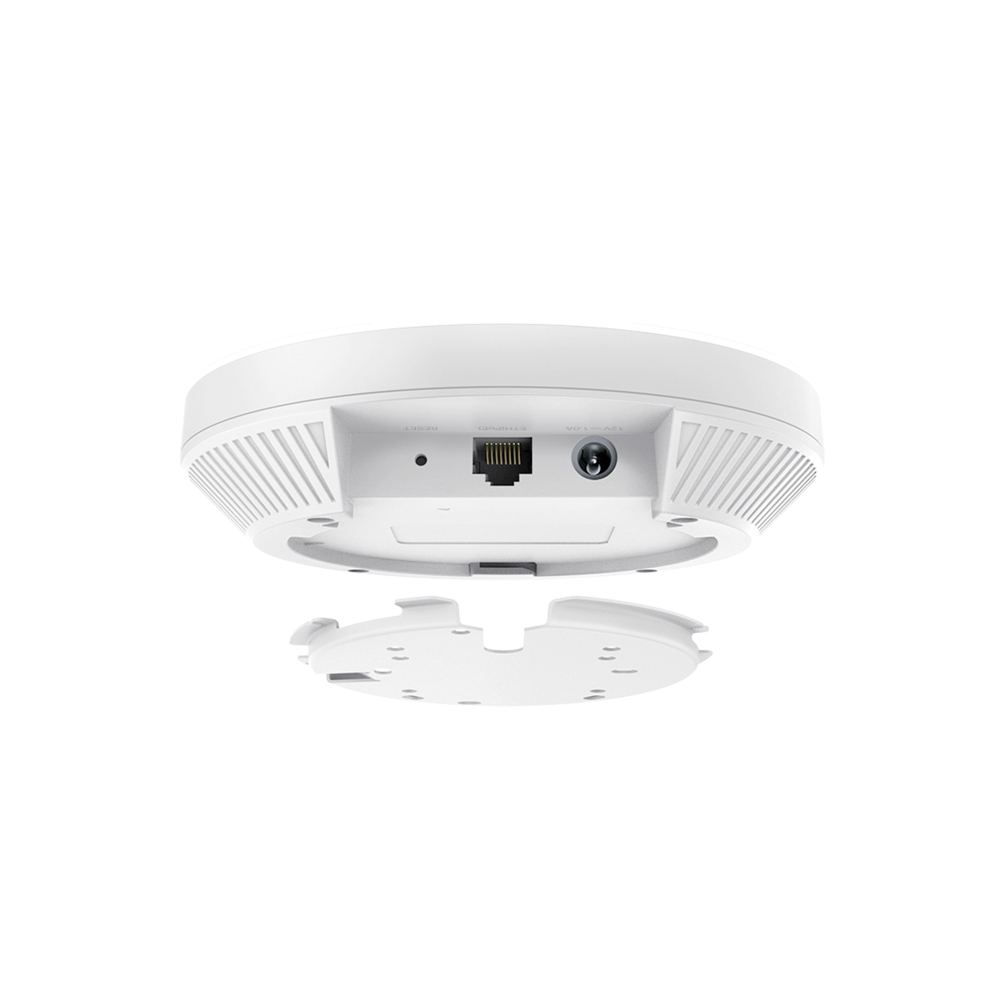

Installation: Ceiling or wall mount using included kits or standard junction boxes, with a simple “push and twist” locking mechanism.
-
Power: EAP650 supports 802.3at PoE+ or included DC adapter; AP9650 adds support for 48V passive PoE in addition to PoE+ and DC.
-
Coverage: Effective coverage around 140 ㎡ (≈1,500 ft²) per unit.
Enterprise Features & Security
-
Management: Fully integrates with the Omada Software Defined Networking (SDN) platform—management via Omada app, software controllers (OC200/OC300), or cloud-based control with centralized configuration, zero-touch deployment, multi-site support, SNMP, SSH, syslog, and more.
-
Security & Access Options: Supports up to 16 SSIDs, captive portals (SMS, vouchers), WPA3, guest isolation, VLAN, 802.1X, Rogue AP detection.
-
Enhanced Pro Model (AP9650) adds WIDS/WIPS intrusion prevention, anomaly detection, and additional enterprise-grade protections.
Summary Comparison
| Feature | EAP650 (AX3000) | AP9650 (Omada Pro) |
|---|---|---|
| Wi-Fi Speed | 2976 Mbps | Same |
| How Many Clients | 250+ | 250+ |
| Management | Omada SDN (standard) | Omada Pro SDN – enhanced features |
| Security Features | WPA3, captive portal, VLAN, 802.1X, etc. | Adds WIDS/WIPS, anomaly detection |
| Power Options | PoE+, DC adapter | PoE+, passive PoE, DC |
| Antennas | Internal omni (~3–5 dBi) | Same |
| Design & Mounting | Ultra-slim ceiling/wall mount | Same |
Why It Impresses
-
Modern Wi-Fi 6 performance—ideal for businesses, offices, hospitality, and educational institutions.
-
Scalable management—Omada SDN simplifies deployment and administration across sites.
-
Compact, unobtrusive design—great for aesthetics and blending into interior environments.
-
Security-ready—especially the AP9650, which offers advanced protections suited for sensitive deployments.
